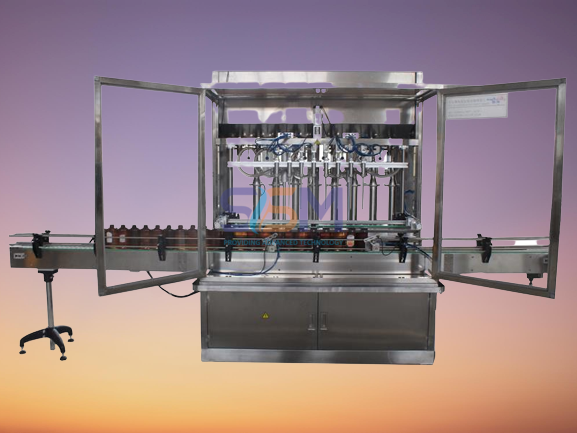

Viscous Liquid and Paste Filling Machine

Shiv Shakti Machtech make Viscous Liquid and Paste Filling Machine is a versatile, high-speed, and efficient solution for filling liquid products of different viscosities into various containers. It is suitable for a variety of industries, including pharmaceuticals, cosmetics, food, and beverages.

Need Help?

Don't hesitate to contact us for more help

Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.

Overview

Shiv Shakti Machtech is a leading manufacturer of packaging machinery and they offer an Viscous Liquid and Paste Filling Machine. This machine is designed to fill liquid products of different viscosities into various containers with high accuracy and speed.

The machine features an Viscous Liquid and Paste Filling system that can fill  simultaneously. The filling process is controlled by a servo motor, which ensures high accuracy and consistency in filling volumes. The machine is also equipped with a nozzle system that prevents drips and spills during the filling process.



The filling machine is fully automatic and can be programmed to fill containers of different sizes and volumes. It can handle containers with volumes ranging from a few milliliters to several liters. The machine’s control system is user-friendly and easy to operate. It allows the operator to set the filling volume, speed, and other parameters.



The Shiv Shakti Machtech Viscous Liquid and Paste Filling Machine is made of high-quality materials and is designed to be durable and reliable. The machine is also designed for easy cleaning and maintenance, reducing downtime and increasing productivity.

Overall, the Shiv Shakti Machtech Viscous Liquid and Paste Filling Machine is a versatile, high-speed, and efficient solution for filling liquid products of different viscosities into various containers. It is suitable for a variety of industries, including pharmaceuticals, cosmetics, food, and beverages.

Technical Specification :
BrandSSM
Model NoVF-200
Number of Head8 nos
Speed*Up to 150 bottles per minute
Power6.5 HP
Stainless Steel Buffer TankApprox. 200 liter
Suitable for ProductsFree Flowing Liquids
Filling Range50ml to 1000ml
Direction of MovementLeft of Right
Filling Accuracy±0.50% to ±1% Filling accuracy on single dose
Viscosity of productUp to 20,000
Working PrincipleVolumetric Piston
OperatingHMI
Bottle StopperPneumatic Cylinder
Diving nozzlePneumatic Cylinder
Height of Conveyor850mm (+50mm Adjustable)
Electrical Supply220 Volts, 1 Phase, 50 Hz.

Applications

this industry uses Our products

Hair Gels

Salad Dressings

Peanut Butter

Honey

Lotions

Shampoos

Sauces

Syrups
