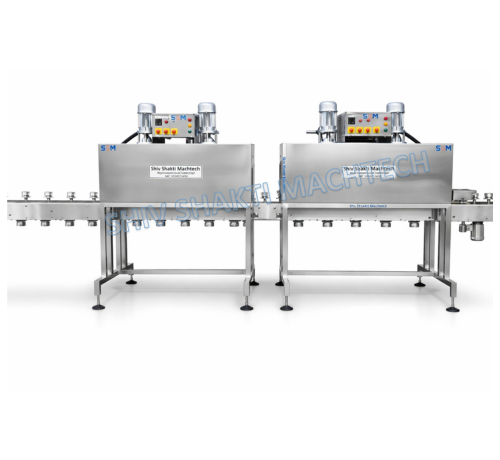

The Two Stage Bottle Shrink Sleeve Machine with Rotating Pucks is specially designed for precise and uniform shrinking of sleeve labels on bottles, jars, tins, and containers that require stable handling during the shrinking process. It is widely used in industries such as beverages, pharmaceuticals, cosmetics, food, and chemicals for full-body sleeve labeling, neck labeling, and tamper-evident band applications. The rotating puck system ensures proper bottle positioning and rotation, allowing even heat exposure across the entire surface, resulting in wrinkle-free and perfectly fitted sleeves even on complex container shapes.
Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.

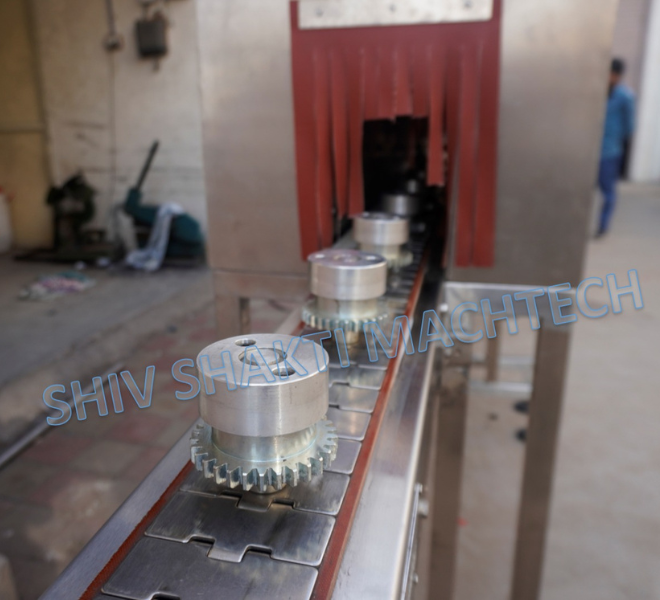

The Two Stage Bottle Shrink Sleeve Machine with Rotating Pucks is a high-performance and advanced shrinking solution engineered for superior label finishing. The machine is equipped with an 18-foot conveyor system integrated with rotating pucks, which securely hold and rotate bottles during the shrinking process for uniform heat application.
The system features two-stage electric heating tunnels, allowing gradual heat exposure that prevents label distortion and ensures smooth, tight sleeve fitting. Each tunnel is fitted with two high-speed blowers, delivering powerful and consistent hot air circulation for optimal shrink performance.
A special inner heating layer is incorporated within the tunnel to enhance heat retention, improve energy efficiency, and minimize heat loss. The rotating puck mechanism makes this machine highly suitable for lightweight, empty bottles and uniquely shaped containers, ensuring consistent results at high production speeds. It is ideal for inline integration with automatic shrink sleeve applicators.
Two Stage Bottle Shrink Sleeve Machine, Rotating Puck Sleeve Shrink Tunnel, Bottle Sleeve Shrink Machine with Puck System, Electric Shrink Tunnel with Rotating Conveyor, Full Body Sleeve Shrink Machine with Pucks, PET Bottle Sleeve Shrink Tunnel with Rotation, Industrial Sleeve Shrink Machine with Puck Holding System, Dual Stage Shrink Sleeve Machine for Bottles, Bottle Label Heat Shrink Tunnel with Rotation, Automatic Sleeve Shrink Machine with Puck Conveyor, Jar and Bottle Shrink Sleeve Machine with Rotating Base, Tin Container Sleeve Shrink Tunnel with Pucks, High-Speed Sleeve Shrink Machine with Rotation System, Inline Bottle Shrink Sleeve Machine with Puck Mechanism, Electric Dual Tunnel Shrink Sleeve Machine with Rotating Pucks.
| Machine Type | Electric Heating Tunnel for Sleeve Label |
| Conveyor Length | 18 Feet |
| Tunnel Configuration | 2 Heating Zones (Dual Tunnel) |
| Tunnel Length | Approx 5 Feet |
| Blower System | 2 Blowers per Tunnel (Total 4 Blowers) |
| Heating Type | Electric Heating Elements |
| Inner Layer | Special Heat Retention Insulated Layer |
| Conveyor Type | Rotating Puck Type Conveyor |
| Speed Control | Variable Frequency Drive (VFD) |
| Temperature Control | Digital Temperature Controller |
| Material of Construction | SS304 / Mild Steel (as per requirement) |
| Power Supply | 3 Phase, 415V, 50Hz |
| Application Compatibility | Bottle, Jar, Tin, Tub |
| Automation | Inline integration with Shrink Sleeve Applicator |
