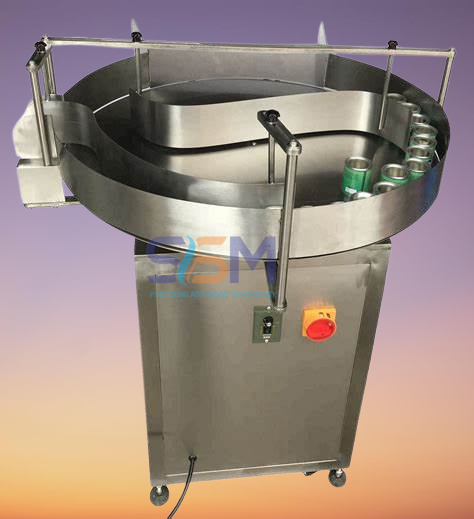

Turn Table

SSM On any powder filling, liquid filling, or tablet bottle packing lines, turntable machines are used to transfer or move a table with different types of vials, bottles, and jars. Turn tables can be used with any machine for product collection or feeding, as well as to change the direction of the entire line for “L” or “U” shape or linear movement of the line. However, they can also function as a buffer system if any machines break down while the operation is in progress.

Need Help?

Don't hesitate to contact us for more help

Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.

Overview

Loading turntable assist operator with feeding round containers to next machine.



There is a section of every bundling industry using Turntable Machine by Shiv Shakti Machtech where people are employed to press fluid products into jugs. You’ve probably noticed that each stuffed item has markings to provide important information about the item and the makers, such as the date of manufacture, expiration date, key ingredients, wholesome value if it’s a food item, amount when pressed, scanner tag, notices or instructions for use, assuming any, and much more. A stuffed item must have all of these details in the mark because consumers have the right to consider the item before making a purchase.

Technical Specification :
BrandSSM
Model NumberTT-30TT-36TT-42
Round Plate Size (In inch)30”36”42”
Suitable for ProductsVials and Cylindrical shape containers
Direction of MovementLeft of Right / Right to Left
RPM of DiskVariable AC frequency drive
Power0.5 HP0.5 HP1 HP
TypeSingle Gate (Entry) / Double Gate (Entry and Exit)
Height of Conveyor850mm (+50mm Adjustable)
Electrical Supply220 Volts, 1 Phase, 50 Hz.
