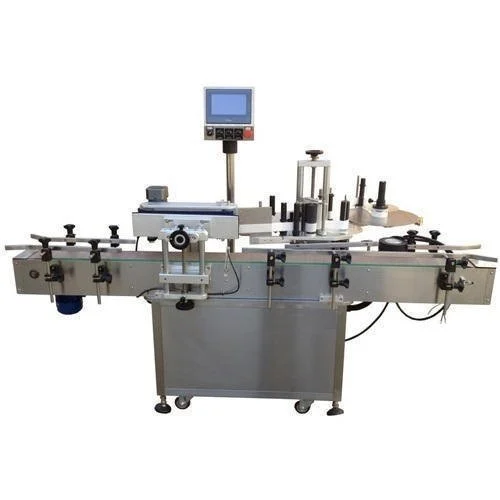

Automatic Roud Pet Bottle Sticker Labeling Machine consist of a label wrapper, pressing pad, label dispenser, up-down assemblies, slat conveyor, product sensor, label sensor, container separator, electronic panel, and operating HMI. Main body construction of machine made of stainless steel 304 square pipe. The label dispenser, wrapper, and pressing pad have up-down assemblies for easy adjustment. Separate motor and drive are given to label wrapper and container separator for easy operation and to get fast production.
Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.
This Injection Vial labeler has different models according to the speed of the machine like 30 Vials per minute, 50 Vials per minute, 80 Vials per minute, 120 Vials per minute, 150 Vials per minute, 200 Vials per minute, and 300 Vials per minute.
Injection Vials will be coming on the moving conveyor of the Injection Vial sticker labeling machine. Once the Phenyl Vials are coming on the conveyor, Phenyl Vials move to the separator where Vials will be separated and Vials move toward the label wrapper one by one.
Before coming to the wrapper, the product sensor senses the Vial, the label sensor & dispensing motor give a signal to each other and the label will be released. The released label will be wrapped in Injection Vials when the Vial passes through the label wrapper and pressing pad.
| Brand | SSM |
|---|---|
| Model Number | SL-120B |
| Number of Head | 1 |
| Speed* | Up to 30 bottle per minute (depends on label length, bottle material and diameter of bottle) |
| Suitable for Products | Pet Bottle/ Jar / Containers |
| Shape of Container | Cylindrical |
| Direction of Movement | Left of Right |
| Label roll specification | Gap between two labels: maximum 3 mm |
| Core diameter: 75mm | |
| External Diameter of roll: maximum 300mm | |
| Type | Wrap Around / Partial Wrap / single side |
| Label Dispenser Motor | Stepper Motor |
| Label accuracy | +/- 0.5mm to 1mm |
| Container sizes | Diameter: 20mm to 100mm |
| Height: 50mm to 250mm | |
| Label sizes | Height: 30mm to 145mm** |
| Length: 20mm to 280mm | |
| Height of Conveyor | 850mm (+50mm Adjustable) |
| Electrical Supply | 220 Volts, 1 Phase, 50 Hz. |
