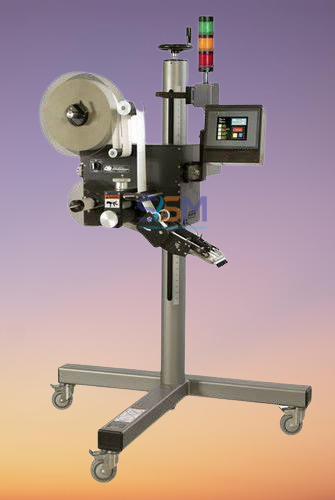

The stand-alone label applicator machine is mostly used to label products on conveyor lines in bulk. It has a strong sensor that can recognise the product as it comes off the conveyor and trigger the application of the label at the proper moment. In order to ensure that the label is perfectly applied to the product, the product must also be handled carefully and tightly controlled.
Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.
Used to apply pressure-sensitive labels directly to product containers, bottles, boxes, plates, books, discs, flat containers, pouches, packages or drums.
SSM Hologram Applicator is a compact and versatile machine that is easy to operate with multiple formats of labelling available for containers of different sizes and shapes. This machine can label up to 200 bottles per minute.
The stand-alone label applicator’s high speed model SSM LABEL – 01 has the ability to produce up to 60/120/150/200/250 products per minute. The inner roll has a diameter of 75 mm, while the outside roll has a diameter of 300 mm. A superb single point synchronized speed control system and an integrated A.C. frequency drive system are also included. In addition, this most recent label application device even has an automated system for determining label length.
| Brand | SSM | ||
| Model Number | LA-60 | LA-120 | LA-200 |
| Number of Head | 1 | ||
| Speed* | Up to 60 bottle per minute | Up to 120 bottle per minute | Up to 200 bottle per minute |
| Suitable for Products | Flat surface products or Hologram Application | ||
| Direction of Movement | Left of Right | ||
| Label roll specification | Gap between two labels: 3 mm | ||
| Core diameter: 75mm | |||
| External Diameter of roll: maximum 300mm | |||
| Type | Top side / Left Side / Right Side / Side Corner (Tamper Evident) / L Shape Tamper Evident / U Shape Tamper Evident / Front or back side | ||
| Label Dispenser Motor | Stepper Motor | Servo Motor | Servo Motor |
| Label accuracy | +/- 1.5 mm | ||
| Height of applicator | As per customer’s requirement | ||
| Electrical Supply | 220 Volts, 1 Phase, 50 Hz. | ||
