Bottles will be coming on the moving conveyor of the Round Liquor Sticker Labeling Machine. Once Liquor Bottles are coming on the conveyor, bottles move to the separator where bottles will be separated and bottles move toward the label wrappers one by one. Before coming to the wrapper, the product sensor senses the bottle, the label sensor & dispensing motor give a signal to each other and the label will be released. The released label will be wrapped around the bottle when the bottle passes through the label wrapper and pressing pad.
Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.

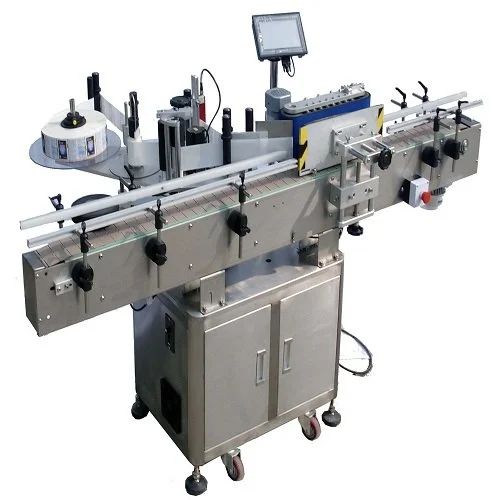

Round Liquor Sticker Labeling Machine consists of a label wrapper, pressing pad, label dispenser, up-down assemblies, slat conveyor, product sensor, label sensor, bottle separator, electronic panel, and operating HMI. Main body construction of machine made of stainless steel 304 square pipe.
The label dispenser, wrapper, and pressing pad have up-down assemblies for easy adjustment. Separate motor and drive are given to label wrapper and container separator to easy operation and to get fast production. This liquor bottle labeler has different model according to speed of machine like 30 bottles per minute, 50 bottles per minute, 80 bottles per minute, 120 bottles per minute, 150 bottles per minute, 200 bottles per minute and 300 bottles per minute.
| Brand | SSM |
| Model Number | SL-120 |
| Number of Head | 1 |
| Speed* | Up to 120 bottle per minute (depends on label length, bottle material and diameter of bottle) |
| Suitable for Products | Glass Bottle/ Jar / Containers |
| Shape of Container | Cylindrical |
| Direction of Movement | Left of Right |
| Label roll specification | Gap between two labels: maximum 3 mm |
| Core diameter: 75mm | |
| External Diameter of roll: maximum 300mm | |
| Type | Wrap Around / Partial Wrap / single side |
| Label Dispenser Motor | Servo Motor |
| Label accuracy | +/- 0.5mm to 1mm |
| Container sizes | Diameter: 20mm to 100mm |
| Height: 50mm to 250mm | |
| Label sizes | Height: 30mm to 145mm** |
| Length: 20mm to 280mm | |
| Height of Conveyor | 850mm (+50mm Adjustable) |
| Electrical Supply | 220 Volts, 1 Phase, 50 Hz. |
