High Speed Automatic Induction Cap Sealing Machine

Induction Cap Sealing Machine

About our products

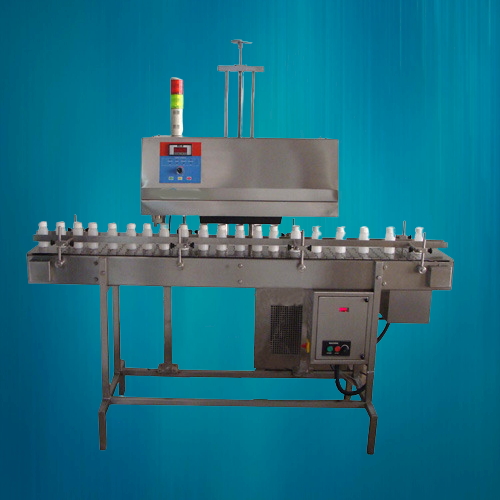

High Speed Automatic Induction Cap Sealing Machine

Continuous induction sealing machine suitable for food industry, candy industry, beverage products, pharmaceutical products such as Induction sealer jam, peanut butter, chocolate sauce, ketchup, butter, cookie, preserve etc. Then it adheres to the bung hole, reaching the aim of wet-proof, leakage-proof, mildew-proof and extending preservation time. It is widely used as sealing package machine in industries such as pharmaceuticals, pesticides, pesticides, lubricant and cosmetics etc. Aluminum foil is sealed automatically when bottle is transmitted through under induction coil by conveyor.

Need Help?

Don't hesitate to contact us for more help

Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.

Overview

It widely used in healthcare industries, pharmaceutical, food & beverages, petro-chemicals, agro-chemicals, confectionary and various other packaging industries.



continuous induction sealing machine Suitable for food industry, candy industry, beverage products, pharmaceutical products such as Induction sealer jam, peanut butter, chocolate sauce, ketchup, butter, cookie, preserve etc. Then it adheres to the bung hole, reaching the aim of wet-proof, leakage-proof, mildew-proof and extending preservation time. It is widely used as sealing package machine in industries such as pharmaceuticals, pesticides, pesticides, lubricant and cosmetics etc. Aluminum foil is sealed automatically when bottle is transmitted through under induction coil by conveyor.



This machine is mainly based on the principle of electromagnetic induction, which can transport ultra-high frequency into inductive head, alternating current to generate high-frequency alternating magnetic field through the coil, the aluminum foil into the caps can feel magnetic field, which causes the eddy current, and through special control, to the moment at high temperature, the aluminum foil composite film to melt and rapid and with bottle mouth adhesive, which achieved high efficiency and high quality of sealing purpose.

Technical Specification :
BrandSSM
Model NumberCS-3000A
Number of Head1
Speed*Up to 120 bottles per minute
Suitable for ProductsPP/Glass/HDPE/LDPE/PET container
Cap TypePlastic Cap
Direction of MovementLeft of Right
Working PrincipleElectromagnetic induction (non-contact heating process)
TypeWater Cooled / Air Cooled
Bottle neck Diameter20mm-120mm
Container sizesDiameter: 25mm to 100mm
Height: 50mm to 300mm
Height of Conveyor850mm (+50mm Adjustable)
Max power3000W
Electrical Supply220 Volts, 1 Phase, 50 Hz.

Applications

this industry uses Our products

Pharmaceutical

Chemical

Beverage

Food industry

Agrochemicals

Confectionary

Petro-Chemicals

Healthcare Industries
