Four Head Screw Capping Machine

Automatic screw capping machines offer a number of advantages, including precision construction finish and advanced technology support. They can fit the production requirements of a variety of industries, including hazardous solvents, pharmaceuticals, and food and beverage processing.

Need Help?

Don't hesitate to contact us for more help

Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.

Product Category

Inquire Here :

A screw capping machine is used to tightly seal containers with different dimensions having screw-on type closures.

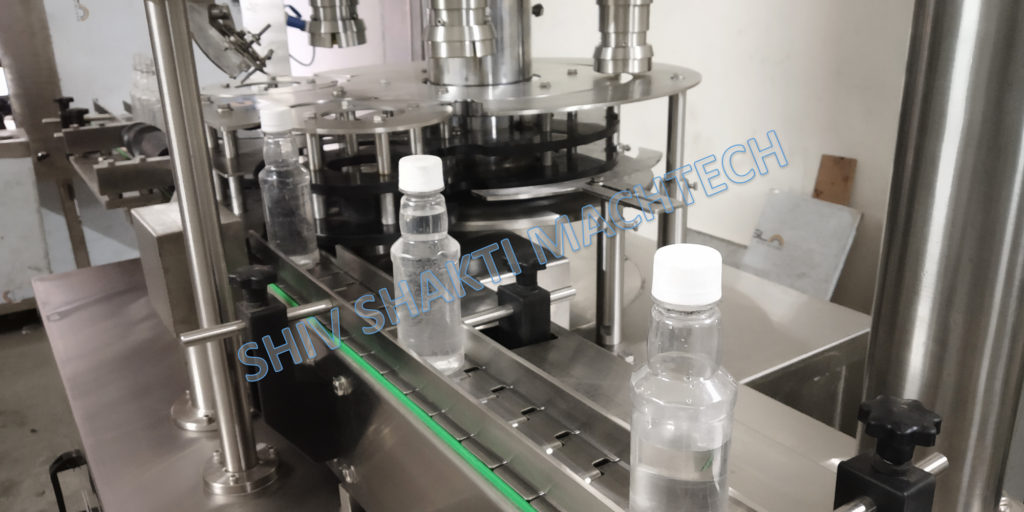

The containers are transferred to the star wheel by means of the conveyor. The star wheel takes the containers and carries them to the caps placing station and then to the closing head. The closing head tightens the cap with the necessary torque. The torque can be set on the closing head by means of magnetic clutch. After completion of the closing process, the star wheel moves the container to next station for press the black small cap, after that the star wheel moves the container to the finish products conveyor.

Brand	SSM
Model Number	CS-100S
Number of Head	4
Speed*	Up to 60 bottles per minute
Suitable for Products	HDPF/LDPE/ PP/PET bottles
Cap Type	Screw Cap / Flip Top Cap / Pull-Push Caps / CTC Cap
Direction of Movement	Left of Right
Working Principle	Mechanical drive applications cam
Cap sizes for bowl	Diameter: 26mm to 70mm
	Height: 15mm to 40mm
	With help of change parts
Cap sizes for cap elevator (If cap sizes is more than 40mm)	Diameter: 40mm to 120mm
	Height: 20mm to 40mm
	With help of change parts
Container sizes	Diameter: 25mm to 90mm
	Height: 50mm to 250mm
	With help of change parts
Height of Conveyor	850mm (+50mm Adjustable)
Power	2.5 HP
Electrical Supply	220 Volts, 1 Phase, 50 Hz.
