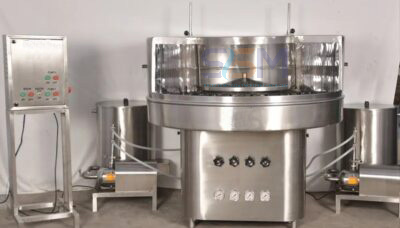

Rotary Bottle Washing Machine (Economical Model)

Rotary Bottle Washing Machine (Economical Model)

About our products

Rotary Bottle Washing Machine (Economical Model)

Rotary Bottle Washing Machine Model No SSM-RBW-32 operates on the rotary principle with a “GENEVA” mechanism and requires manual loading and unloading of bottles. The machine operates on the principle of indexing motion, which ensures thorough cleaning of the bottles. The machine’s design allows for efficient and effective cleaning, ensuring that the bottles are thoroughly cleaned and sterilized before being filled with medicines.

Need Help?

Don't hesitate to contact us for more help

Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.

Rotary Bottle Washing Machine (Economical Model)
Overview

Glass or plastic bottles washing for pharmaceutical, Chemical, Beverage, food industry. Washing bottles of various sizes and small capacity.

SSM make rotary bottle washing machine is compact and highly efficient machine with elegant look. This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. Rotary bottle washing machine operates on the rotary principle with “GENEVA” mechanism and requires manual loading and unloading of bottles. The bottle washing machine operates on the rotary principle with an indexing motion mechanism and requires manual uploading and unloading.

There is a rotating platform on which the bottles are loaded and cleaned in series and the most apt for plastic and glass bottles using high centrifugal pumps. The bottle holder i.e. nylon cups are specially designed to accommodate bottles with varying neck diameter and bottle diameter. The bottles are placed in an inverted position in cups. The timings between the two washes are also regularised. Water recycling may be availed as per the client’s requirement are adjusted in this rotary bottle washing machine. The medical purpose is solved as multiple air and water provide utmost hygiene. Rotary bottle washing machine truly offers a saving of water too and is based on the ‘GENEVA ‘principle.

Technical Specification :
BrandSSM
Model NoRBW-32
Speed*30 to 40 Bottles/ Minute
Power2 HP
Washing Cycle4 Inner + 1 Outer + 1 Air Flash (Inner wash sequence are inter changeable)
Bottle size15 ml to 1000 ml with help of change parts
Rotary DirectionLeft to Right
Working Height850mm (+50mm Adjustable)
Electric Supply415 VAC Three Phase Power Supply
Air Pressure: Minimum6 bar pressure 5 CFM
Tank Capacity75 Litres – Stainless Steel 304 (2 Nos.)
Electrical Supply440 Volts, 3 Phase (4 wire System) 50 Hz.

Applications

this industry uses Our products

Pharmaceutical

Chemical

Beverage

Food industry
