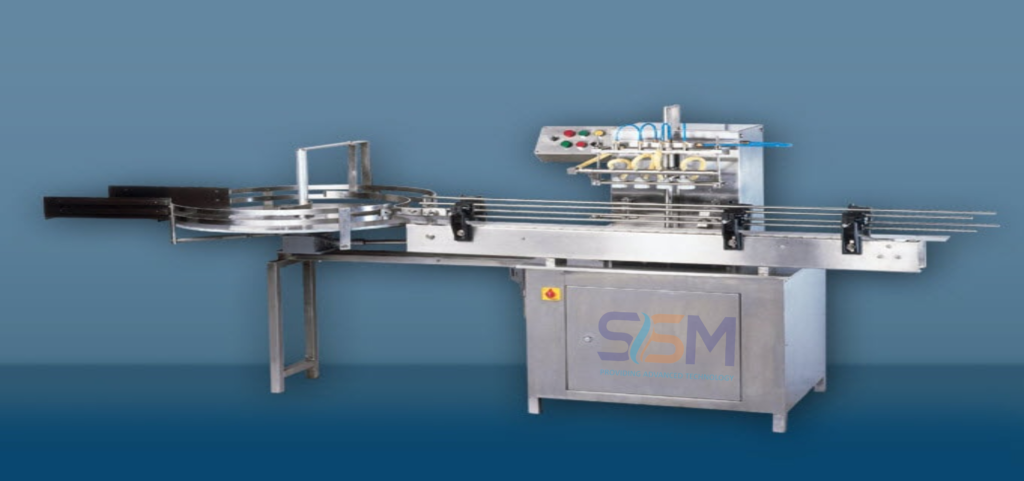

Automatic Six Head Air-Jet Vacuum Cleaning Machine

The Airjet cleaning machine applies compressed air through jets and also sucks through vacuum. Machine can ve used to clean glass/plastic/poet bottles, jars etc. machine is suitable for cleaning of non-sterile products like dry syrups and bulk packing of tablets & capsules.

Need Help?

Don't hesitate to contact us for more help

Shiv Shakti Machtech in Offering Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries.

Overview

Glass or Pet bottles cleaning for pharmaceutical, Chemical, Beverage, food industry.



The Airjet cleaning machine applies compressed air through jets and also sucks through vacuum. Machine can be used to clean glass/plastic/poet bottles, jars etc. machine is suitable for cleaning of non-sterile products like dry syrups and bulk packing of tablets & capsules.



Automatic Vertical Air Jet Cleaning Machine work on positive air pressure & vacuum cleaning.  Cleaning section is equipped with continuous vacuum system. Bottle reaches to the cleaning section, a pair of nozzle starts to flush the air inside the neck of the bottle and simultaneously vacuum will suck the particle, disturbed by the air. Duly cleaned bottles further transfers onto exit end of conveyor and transfers bottles onto another machine or out-feed collection tray.

Technical Specification :
BrandSSM
Model NoAJC-150
No of head6 nos
Speed*80 to 100 bottles per minute
Direction of MovementLeft to Right
Bottle DiameterUp to 90mm
Conveyor Length1830mm
Cleaning CycleAir Pressure + Vacuum
Working Height850mm (+50mm Adjustable)
Power1.00 HP For Main Drive.
0.75 HP for Blower.
Electrical Supply440 Volts, 3 Phase (4 wire System) 50 Hz.
Filtered Compresses Air6 to 7 bar air pressure

Applications

this industry uses Our products

Pharmaceutical

Chemical

Beverage

Food industry
